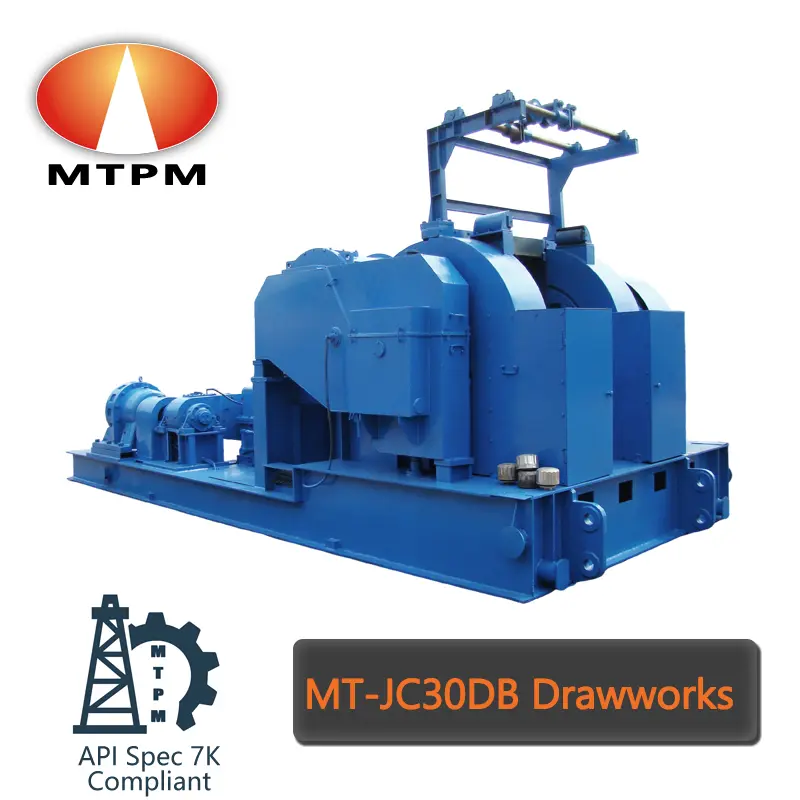

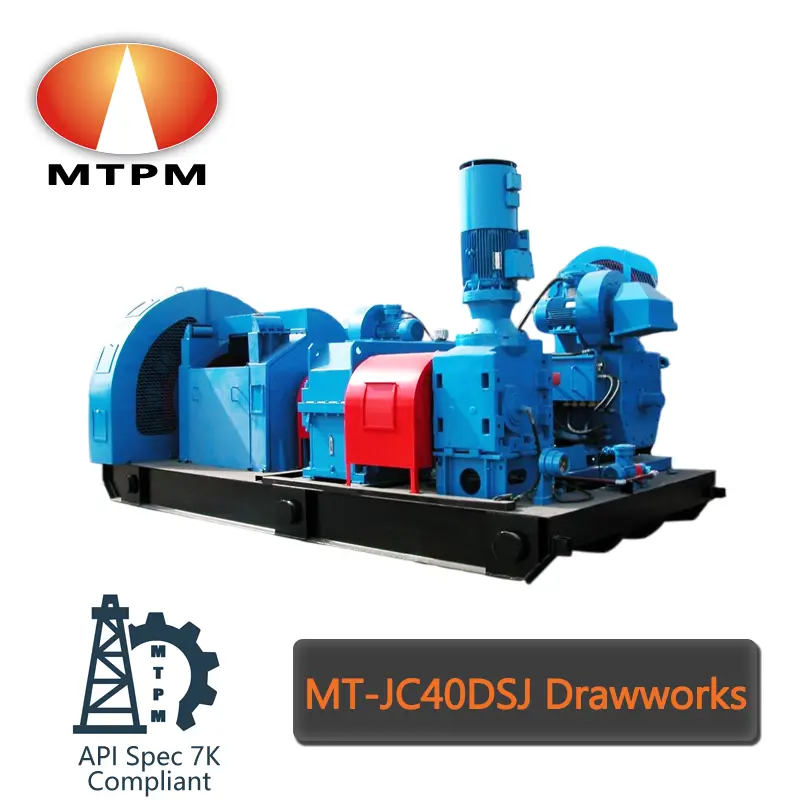

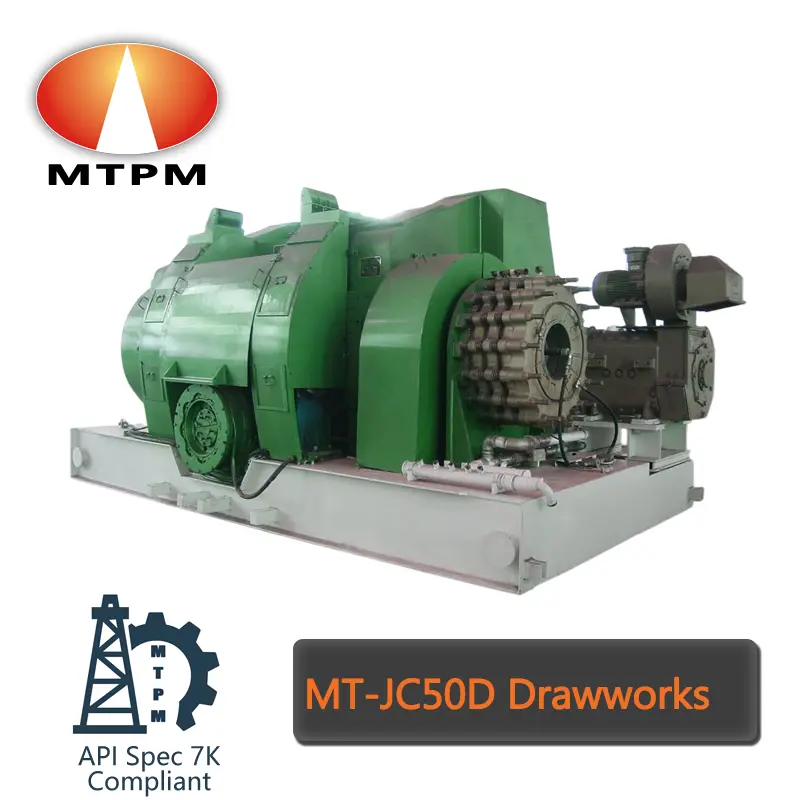

MT-JC Series Drawworks for Drilling Rig Heavy-Duty Hoisting System

Every unit is manufactured in line with international oilfield equipment standards (API 7K) and is subject to strict inspection procedures to guarantee safety and performance. The drum is precision-grooved to ensure smooth spooling of the drilling line, while the low speed and high speed ends of the shaft are equipped with ventilated pneumatic clutches for efficient torque transmission. A water-cooled brake rim, treated with medium frequency induction hardening, offers extended durability and stable braking performance under continuous heavy-duty cycles. Transmission sprockets also undergo surface hardening to resist wear, further enhancing reliability during prolonged operation. These features enable the drawworks to meet the demanding requirements of deep drilling and high-load hoisting operations.

Product Features
• The drawworks incorporates forced lubrication for the chain drive and involute spline-type transmission clutches, reducing wear and extending service life under severe working conditions.
• The drilling contractors can configure the main brake system with either a band brake or a disc brake, depending on rig requirements. For enhanced safety in extended tripping or heavy-load lowering operations, auxiliary braking options include eddy current brakes or Eaton water-cooled dynamic brakes, providing smooth and controlled deceleration.
• These systems ensure reliable stopping power, reduced heat build-up, and safe operation even under extreme loads.
• With its combination of strong structural components, advanced braking systems, and high efficiency, the MTPM drawworks stands as a proven solution for drilling contractors seeking durability, adaptability, and operational safety.

Our drawworks with alloy steel shafts, water-cooled braking, forced lubrication, and multiple brake options, designed for safe and efficient drilling rig hoisting operations.
