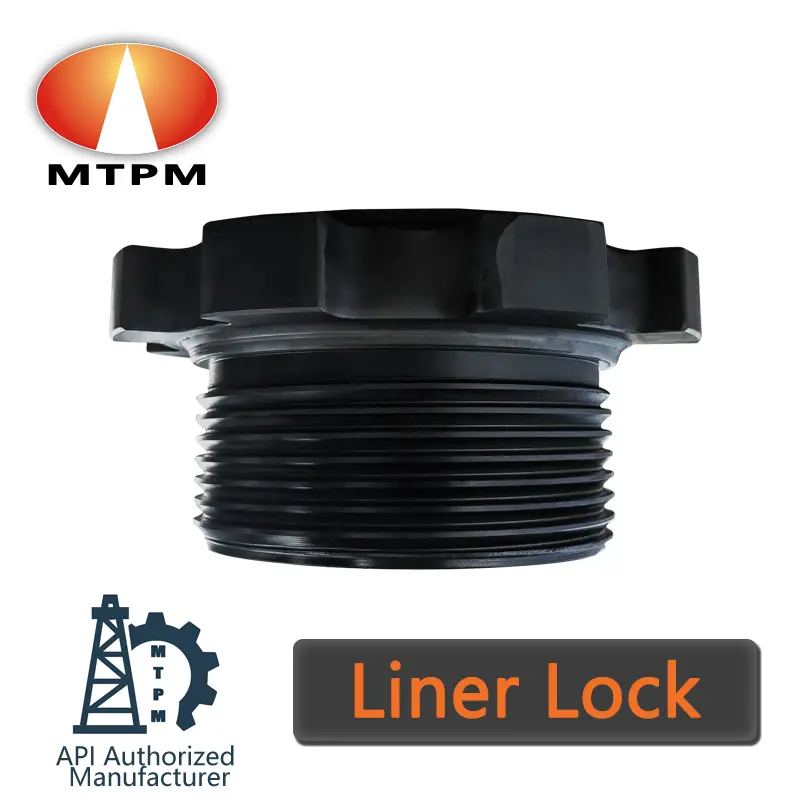

Liner Lock for Mud pump

The liner locking, also known as liner retainer or liner thread ring, is a precision engineered component installed in the fluid end of a mud pump. Threaded directly into the fluid module, it firmly secures the liner in place, ensuring accurate alignment with the piston and stable operation under high pressure.

This component is essential for maintaining the integrity and performance of the pump during continuous drilling operations. Its sophisticated design prevents liner movement or vibration, which could otherwise lead to premature wear or fluid leakage. This product also allows for easy removal and replacement of liners during maintenance, helping minimize downtime.

    Contact us
    product details

    Product Specifications

    Application

    Drilling mud pump fluid end

    Working pressures

    5000 PSI (35MPa),7500PSI (51.7MPa)

    Temperature rating

    -20°C to 120°C

    Material

    35CrMo (Equivalent to AISI 4135 or AISI 4140)

    Service life

    5000 hours ~ 10,000 hours or more, depending on the operating conditions and drilling conditions

    Extended Life

    With proper maintenance and regular liner replacements, the liner lock thread body can last up to 15,000 hours

    Third party witness and inspection report available

    Bureau Veritas (BV), CCS, ABS, SJS etc.

    Product Features

    • Forged 35CrMo alloy steel construction, precision heat‑treated and machined to deliver exceptional strength, wear resistance, and corrosion protection,ideal for harsh drilling mud environments.
    • Reliable liner retention under cyclic pressure, with metal‑to‑metal locking that secures the liner in the fluid cylinder, preventing movement or vibration even under high‑frequency piston strokes.
    • Quick and safe maintenance, thread‑in installation enables easy liner insertion or removal; compatible with all major Chinese mud pump models (BOMCO, LSNOV,HONGHUA/RG/RONGSHENG) and overseas pumps.
    • Simple structure for easy installation and maintenance, allowing for quick liner replacement without disassembling the entire fluid end, reducing downtime and improving operational efficiency.

    OEM Equivalent / Compatible Product Part Numbers

    Our valve body is manufactured in full accordance with original drawings and are directly interchangeable with the following part numbers:

    OEM Brand

    Pump Models

    Compatible Part Numbers

    BOMCO

    F1300/F1600/ F1600L/F1600HL

    AH36001-05.18.00

    AH130101051500

    F2200HL

    AH220201051200

    HONGHUA/HH

    F1300/F1600/ F1600L/F1600HL

    GH3161-05.17.00

    EMSCO/Mud king

    FB1300/FB1600

    6316-0367-00

    IDECO

    T500/T800/T1000

    551-405-05

    T1300/T1600

    551-105-03

    National/LSNOV

    7P50

    1294165

    8P80

    1291165

    9P100

    1293165

    10P130

    1290165

    12P160

    1292165

    10P130 L shaped

    6495+6595

    12P160 L shaped

    6476+6576
    Contact for more details about the valves which used for HONGHUA, RG, RONGSHENG, EMSCO, LSNOV
    All product names, trademarks, and part numbers are used for identification purposes only and are the property of their respective owners. We are an authorized and recognized supplier, if you are looking for specific mud pump component part numbers, please contact our sales team for detailed references or technical support.
